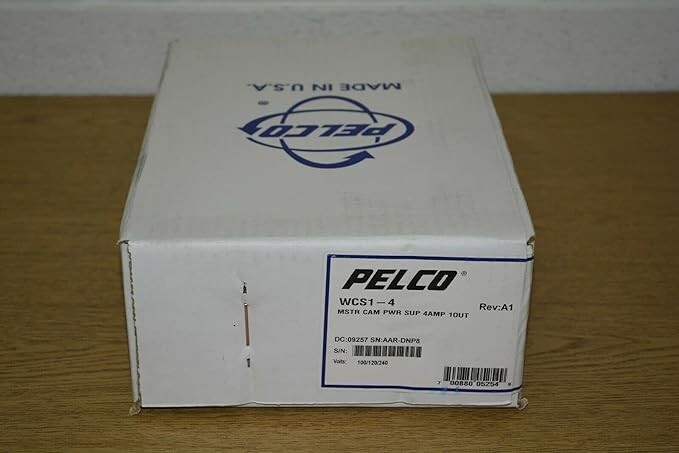

Pelco WCS1-4 Outdoor Surveillance Camera Waterproof Power Supply

The Pelco WCS1-4 is a single-output power supply for use with standard CCD cameras as well as Pelco's indoor or outdoor Spectra and Esprit pan-and-tilt systems. This model outputs 4, 26 or 28 VAC power, with the extra voltage above 24 VAC provided as a way to compensate for power loss from long cable runs. Input voltage is selectable between 100, 120 or 240 VAC.

The maximum current capacity for this model is 4 A (100 VA), with a fuse system providing protection from power overloads. While this method requires the replacement of fuses after each occurrence, by acting faster and being more precise, a fuse system provides a higher degree of oveload protection as compared to a circuit-breaker system. This unit is suitable for outdoor installation and can be secured by an optional padlock.

Single power supply for standard CCD cameras as well as Pelco's Spectra and Esprit pan-and-tilt dome systems

Weather-proof design for outdoor installation (NEMA Type 4X and IP66)

120 VAC or 240 VAC selectable input

28 VAC Power output for long cable runs

AC Power indicator with power On/Off switch

Fuse circuit protection

Padlockable
