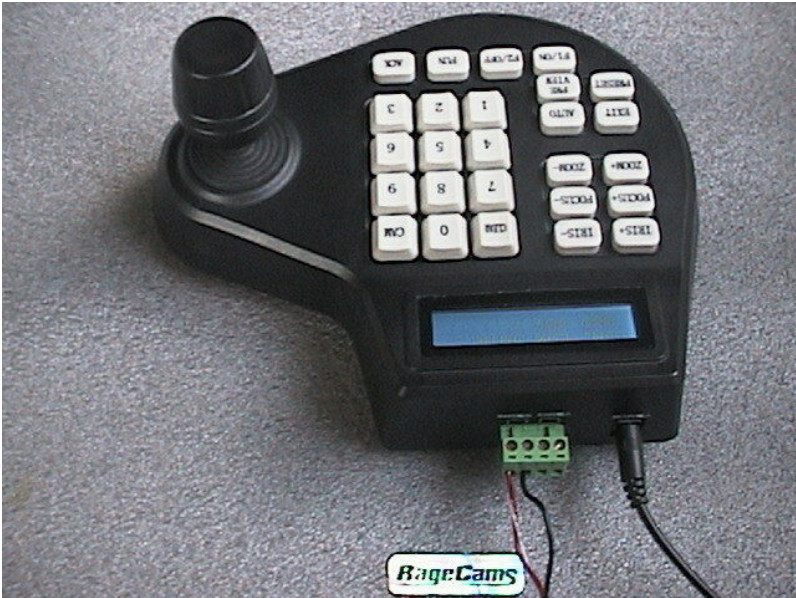

OPTICAL PAN TILT ZOOM PTZ CAMERA CONTROLLER PELCO D-P Preset Tour

 CONNECT CONTROLLER AS SHOWN RS485 A-B
The keyboard Controls the high speed dome camera ptz functions, it can be used as the main keyboard or branch keyboard, It is very easy to use & control the PTZ camera with it.

MODEL RAGECAM/PTZCTR Power supply
DC9V-12V, 500mA Communication RS485 Protocol Pelco-D, Pelco-P, Pelco-D1, Pelco-P1, New Baud Rate 1200, 2400, 4800, 9600, 19200 Communication Distance 1500m (4900ft) with twisted-pair Max controllable Cameras 128 units Camera ID from
1-255 Dimension
70(H)x165(W)x270(L)mm Temperature Operation
0-60°C

• LCD display, as man-machine interface, LCD display board is more convenient, each to understand, plentiful information, etc.
• In-built multi-protocol: Pelco-D, Pelco-P, Pelco-D1, Pelco-P1, New maximum 1.5KM** (4900ft) long communication distance, ideal for applications where a Gate House or a Security Lodge is located a distance from the installed unit.
• Can be combined to control the PTZ camera with a Stand alone DVR
• Maximum controllable units 128 PTZ cameras max
